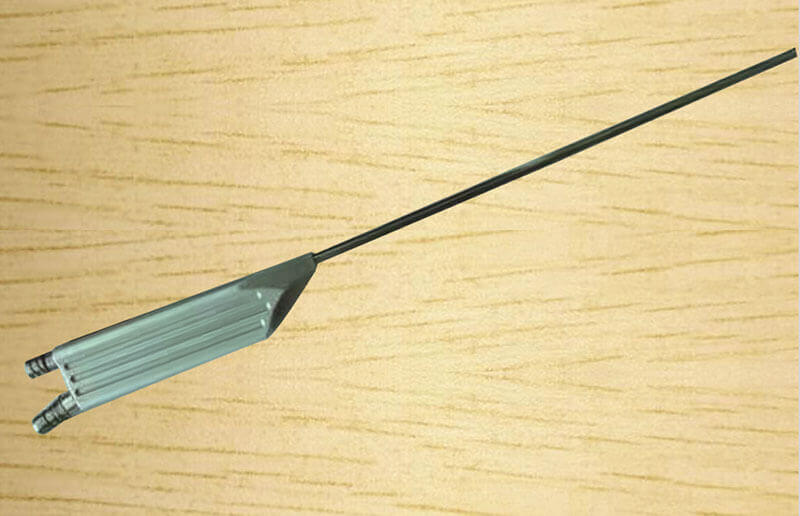

在醫院的設備科，內窺鏡維修師是“器械醫生”——他們手中的內窺鏡，既能深入人體探查病灶，也可能因一次意外跌落就“罷工”。從筷子粗細的胃鏡到蛇形關節的胸腔鏡，每一種內窺鏡的“病況”都藏著獨特的維修密碼。

　　In the equipment department of the hospital, endoscope maintenance technicians are "instrument doctors" - the endoscopes in their hands can not only penetrate deep into the human body to explore lesions, but may also "strike" due to an accidental fall. From chopstick sized gastroscopes to snake shaped thoracoscopes, each type of endoscope has a unique repair code hidden in its "condition".

　　一、光學系統“視網膜修復”

　　1、 Optical system for retinal repair

　　鏡頭除霧術：

　　Lens defogging technique:

　　先用顯微鏡觀察物鏡組，若發現水漬狀陰影，需拆解鏡頭組，用異丙醇+乙醚混合液浸泡清洗。

　　First, observe the objective lens group under a microscope. If water stains or shadows are found, disassemble the lens group and soak it in a mixture of isopropanol and ether for cleaning.

　　高端內窺鏡配備“自加熱除霧”功能，維修時需用示波器檢測加熱絲電阻，誤差＞5%即需更換。

　　High end endoscopes are equipped with a "self heating defogging" function. During maintenance, an oscilloscope is needed to detect the resistance of the heating wire. If the error is greater than 5%, it needs to be replaced.

　　光纖斷裂重生：

　　Fiber optic fracture regeneration:

　　傳像束斷裂是常見“絕癥”，需用光纖切割刀制備新端面，再通過光學膠粘接，損耗率需控制在10%以內。

　　The breakage of the transmission beam is a common "terminal disease", which requires a fiber optic cutting knife to prepare a new end face, and then bonding it with optical adhesive. The loss rate needs to be controlled within 10%.

　　案例：某根傳像束斷裂50%，維修后分辨率從1080P降至720P，直接報廢。

　　Case: A certain image transmission bundle broke by 50%, and after repair, the resolution decreased from 1080P to 720P, and it was directly scrapped.

　　CCD/CMOS“換眼手術”：

　　CCD/CMOS "Eye Replacement Surgery":

　　拆解內窺鏡先端部，用熱風槍加熱傳感器排線，力度過大易撕裂柔性電路板。

　　Disassemble the tip of the endoscope and heat the sensor cable with a hot air gun. Excessive force can easily tear the flexible circuit board.

　　新傳感器需用標準色卡校準，色溫偏差＞200K會導致圖像偏色。

　　The new sensor needs to be calibrated with a standard color card, and a color temperature deviation greater than 200K will cause image color deviation.

　　二、機械結構“關節復位”

　　2、 Mechanical structure "joint reduction"

　　彎曲蛇骨“正骨”：

　　Curved snake bone "orthopedics":

　　胸腔鏡蛇形關節卡頓？需用內窺鏡專用潤滑脂，粘度需控制在100-150cst之間。

　　Is the snake joint stuck during thoracoscopy? Special lubricating grease for endoscopes is required, with viscosity controlled between 100-150cst.

　　鋼絲繩斷裂是“高發傷”，更換時需保持預緊力，否則彎曲角度會偏差15°以上。

　　Wire rope breakage is a "high incidence of injury", and it is necessary to maintain pre tension when replacing it, otherwise the bending angle will deviate by more than 15 °.

　　插入管“植皮術”：

　　Inserting a tube for skin grafting:

　　外皮破損易引發“交叉感染”，需用醫用級聚氨酯熱縮管修補，耐酒精擦拭次數需＞500次。

　　Damaged outer skin can easily cause "cross infection" and requires repair with medical grade polyurethane heat shrink tubing. Alcohol resistant wiping should be done more than 500 times.

　　案例：某根插入管修補后，耐彎曲次數從2萬次驟降至5千次，最終整體更換。

　　Case: After repairing a certain insertion tube, its bending resistance dropped sharply from 20000 times to 5000 times, and it was eventually replaced as a whole.

　　先端部“微整形”：

　　Micro shaping of the tip:

　　先端部撞擊變形？需用精密夾具固定，再用0.1mm精度砂輪打磨，誤差＞0.05mm會戳傷組織。

　　Deformation caused by impact at the tip? It needs to be fixed with precision fixtures, and then polished with a 0.1mm precision grinding wheel. An error greater than 0.05mm will puncture the tissue.

　　三、電子系統“心臟搭橋”

　　3、 Electronic system 'heart bridge'

　　線纜“通脈”：

　　Cable "pulse":

　　用時域反射儀（TDR）檢測信號線斷點，誤差定位±1cm，開刀位置不對可能“誤傷”其他線路。

　　Use a time domain reflectometer (TDR) to detect signal line breakpoints, with an error positioning of ± 1cm. Incorrect cutting position may "accidentally damage" other lines.

　　高頻信號線需用同軸電纜替換，特性阻抗需嚴格匹配50Ω，否則圖像會出現“重影”。

　　The high-frequency signal line needs to be replaced with coaxial cable, and the characteristic impedance needs to be strictly matched with 50 Ω, otherwise the image will show "ghosting".

　　主板“換芯”：

　　Motherboard "chip replacement":

　　用熱風槍拆解BGA芯片，溫度需精準控制在260±5℃，過高會“燙傷”焊盤。

　　Disassemble BGA chips with a hot air gun, and the temperature should be precisely controlled at 260 ± 5 ℃. If it is too high, it will "burn" the solder pads.

　　新芯片需刷寫對應固件，版本不匹配會導致設備“變磚”。

　　The new chip needs to flash the corresponding firmware, and version mismatch can cause the device to 'brick'.

　　光源“續命”：

　　Light source "life extension":

　　氙燈老化？需用光譜儀檢測色溫，低于6000K必須更換，否則會影響醫生判斷組織顏色。

　　Xenon lamp aging? It is necessary to use a spectrometer to detect color temperature. If it is below 6000K, it must be replaced, otherwise it will affect the doctor's judgment of tissue color.

　　LED光源維修更簡單，但需注意驅動電流，超過額定值10%壽命減半。

　　LED light source maintenance is simpler, but attention should be paid to the driving current. If it exceeds the rated value by 10%, the lifespan will be halved.

　　四、特殊維修“黑科技”

　　4、 Special maintenance "black technology"

　　氣密性“體檢”：

　　Airtightness "physical examination":

　　用氦質譜檢漏儀檢測內窺鏡氣密性，漏率＞1×10^-6Pa·m?/s即判定“溺水”。

　　Using a helium mass spectrometer leak detector to detect the airtightness of an endoscope, with a leakage rate greater than 1 × 10 ^ -6Pa · m? /S is judged as' drowning '.

　　維修后需做“水壓試驗”，0.2MPa壓力下保持30分鐘不滲水才算合格。

　　After maintenance, a "water pressure test" is required, and it is considered qualified if there is no water leakage for 30 minutes under a pressure of 0.2MPa.

　　超聲清洗“排毒”：

　　Ultrasonic cleaning for detoxification:

　　生物污染內窺鏡需用酶洗液+超聲清洗，頻率40kHz最佳，既能去污又不傷光學元件。

　　Biological contaminated endoscopes need to be cleaned with enzyme wash solution and ultrasound, with a frequency of 40kHz being optimal, which can remove dirt without damaging optical components.

　　案例：某根內窺鏡因未徹底清洗，導致后續患者交叉感染，維修廠賠付上百萬。

　　Case: A certain endoscope was not thoroughly cleaned, resulting in cross infection among subsequent patients, and the repair shop compensated millions.

　　老化測試“煉獄”：

　　Aging test 'purgatory':

　　維修后需模擬臨床使用，連續彎曲5000次、高溫高濕（40℃/90%RH）環境下運行24小時。

　　After maintenance, it is necessary to simulate clinical use by continuously bending 5000 times and running for 24 hours in a high temperature and high humidity (40 ℃/90% RH) environment.

　　高端設備還需做“跌落測試”，1米高度自由落體到硬質地面，功能正常才算過關。

　　High end devices also need to undergo a 'drop test', where they can freely fall from a height of 1 meter to a hard ground and function normally before passing the test.

　　五、維修避坑“紅寶書”

　　5、 Repair and avoid pitfalls with the 'Red Treasure Book'

　　“小病大修”陷阱：

　　The trap of 'minor illness overhaul':

　　鏡頭起霧？先嘗試除霧程序，80%的“病情”能緩解，直接換鏡頭組成本翻5倍。

　　Is the camera fogging up? First, try the defogging program. 80% of the "illness" can be relieved, and simply change the lens to make up this 5x zoom.

　　“李鬼”配件識別：

　　Identification of "Li Gui" accessories:

　　傳像束看切割角度，原廠件呈45°斜面，副廠件多為90°直角，影響成像清晰度。

　　According to the cutting angle of the transmission beam, the original parts are inclined at a 45 ° angle, while the secondary parts are mostly at a 90 ° right angle, which affects the clarity of the imaging.

　　維修記錄“溯源”：

　　Traceability of maintenance records:

　　要求維修廠提供“病歷本”，記錄故障代碼、更換配件編號，便于后續追溯。

　　Request the repair shop to provide a "medical record book" to record fault codes and replacement part numbers for easy traceability in the future.

　　在內窺鏡維修師眼中，沒有“報廢”的設備，只有未被開發的潛能。記?。好恳淮尉珳实木S修，都是對生命的敬畏。下次再看到“手術成功”四個字時，不妨想想那些在幕后“救死扶傷”的維修師——他們手中的螺絲刀，同樣在守護著生命的尊嚴。

　　In the eyes of an endoscope repairman, there are no "scrapped" devices, only untapped potential. Remember: every precise repair is a reverence for life. The next time you see the four words' successful surgery ', you may want to think of the repairman behind the scenes who' saves lives and helps the injured '- the screwdriver in their hand, also guarding the dignity of life.
